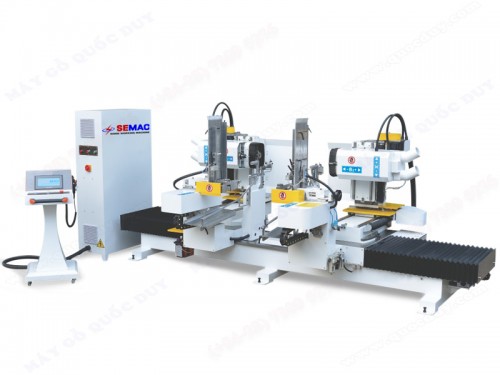

CNC DOUBLE END MORTISING MACHINE WITH DIFFERENT SHAPE

Model: SM-2218

Feature
Auto feeding, processing on both ends at the same time, improve working efficiency. CNC system, just enter the parameters into the selection of available modes, convenient, quick and simple operation. Workers do not contact too close to the machine, avoid injury Most components are imported from reputable firms in the world, ensuring the progress and function of the machine is always stable. Automatic loading and unloading, reducing working time and labor costs. Coordinate with appropriate tools to help machine more efficiently better processing. Various tenon type: square, tenon trapezoidal, circular tenon, elliptical tenon, ....
Specifications
Max. machining length	: 2150 mm
Max. working tenon length	: 45 mm
Max. Z-axis stroke	: 180 mm
Air pressure	: 6 bar
Spindle speed	: 18000 rpm
Spindle power	:  4.5 kw x 2
Router shaft power	: 2.2 kw x 2
Total power	: 15.4 kw
Machine size	: 4200 x 2200 x 1700 mm
Net weight	: 2000 kgs
