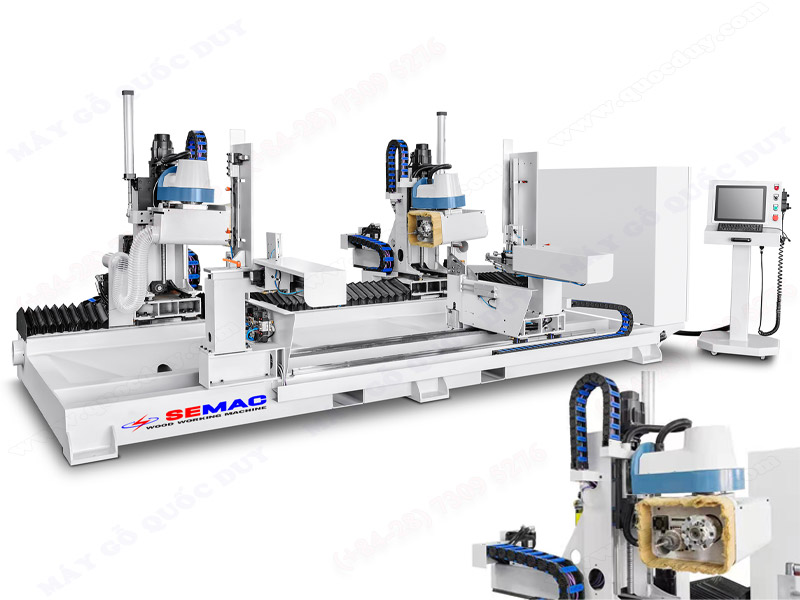

DOUBLE END TENONER ROBOT
DOUBLE END TENONER ROBOT
Model: SM-200/4CNC
| Specifications | |
|
Width of processing material
|
: 10-120mm
|
|
Length of processing material
|
: 250-2000mm
|
|
Thickness of processing material
|
: 10-80mm
|
|
Max. Tenon made size
|
: 40 mm
|
|
Vertical adjustable angle
|
: +46 & -10 degree
|
|
Horizontal adjustable angle
|
: +46 & -10 degree
|
|
Spindle speed
|
: 9000-12000 rpm
|
|
nền tảng hệ thống
|
: Windows 7
|
|
Dust suction inlet
|
: 100x2 &150x1
|
|
Feeding system
|
: Automatic feeder system
|
|
Spindle motor
|
: 5.5 KWx2
|
|
Total power
|
: 23 KW
|
|
Net weight
|
: 2500 kgs
|
|
Machine size
|
: 4300x2300x2100 mm
|
