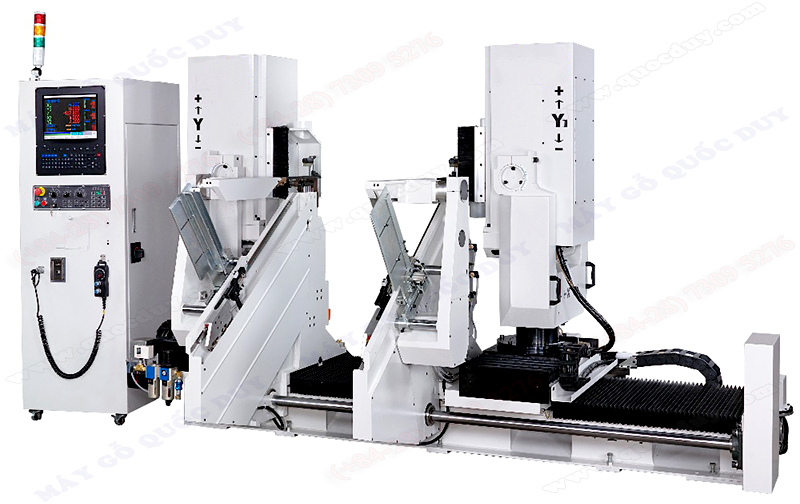

CNC DOUBLE END TENONER
CNC DOUBLE END TENONER
Model: DRTB-100
| SPECIFICATION | |
|
Max. size of wood
|
50x145x1500 mm
|
|

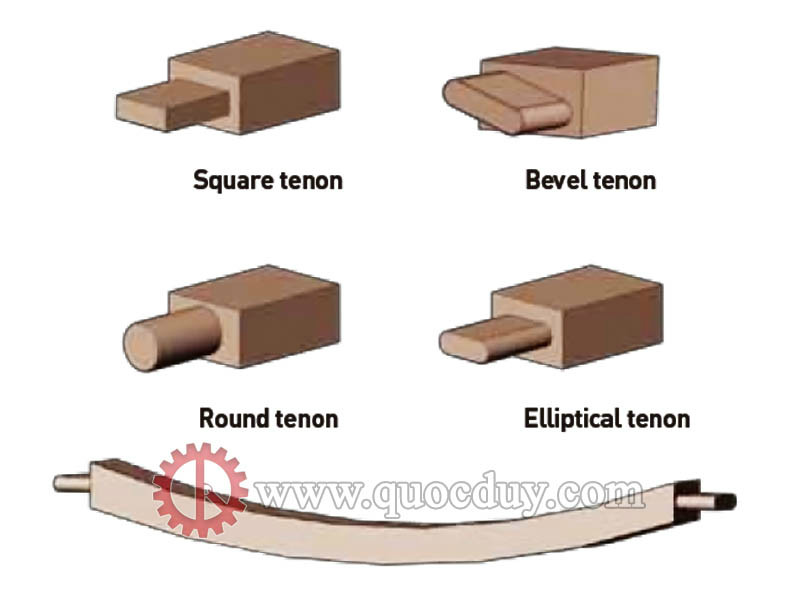

Max. tenoning size
|
30x45x125 mm
|
|
Max. width of cut( Z-axis)
|
1500 mm
|
|
Max. length of cut( Z-axis)
|
1300 mm
|
|
X-axis feed rate
|
50 m/ min
|
|
X1-axis feed rate
|
50 m/ min
|
|
Y-axis feed rate
|
50 m/ min
|
|
Y1-axis feed rate
|
50 m/ min
|
|
Z-axis feed rate
|
0.667 m/ min
|
|
Spindle speed
|
0 – 9000 rpm
|
|
Spindle motor
|
3.3 Kw x 2
|
|
X1-axis servo motor
|
0.85 Kw
|
|
X2-axis servo motor
|
0.85 Kw
|
|
Y1-axis servo motor
|
0.85 Kw
|
|
Y2-axis servo motor
|
0.85 Kw
|
|
Z-axis servo motor
|
0.85 Kw
|
|
Net weight
|
2350 Kg
|
|
Machine size
|
3900x1700x1930 mm
|
