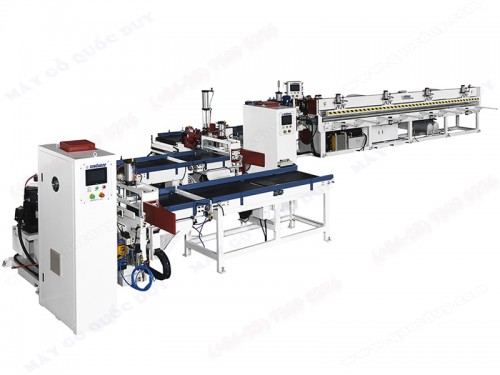

FULLY AUTOMATIC FINGER JOINT SYSTEM
FULLY AUTOMATIC FINGER JOINT SYSTEM
Model: NAT-620
| Specifications | |
|
TABLE FEEDER IN: A – DTC 62A
|
|
|
Table size
|
: 620 x 900 mm x 2
|
|
Feed speed
|
: 55 m/min
|
|
Conveyor motor
|
: 1/2 HP x 2
|
|
TABLE TRANSSHIPPED FEED: C – STC 62A
|
|
|
Table size
|
: 620 x 900 mm
|
|
Feed speed
|
: 55 m/min
|
|
Conveyor motor
|
: 1/2 HP x 1
|
|
TABLE FEEDER OUT: E – STC 62C
|
|
|
Table size
|
: 620 x 900 mm
|
|
Feed speed
|
: 55 m/min
|
|
Conveyor motor
|
: 1/2 HP x 1
|
|
ROLLER RACK DEVICE: F – RO 62
|
|
|
Table size
|
: 620 x 900 mm
|
|
Feed speed
|
: 70 m/min
|
|
Conveyor motor
|
: 1/2 HP x 2
|
|
TABLE FEEDER IN FINGER JOINT ASSEMBLER: F – FCC 20
|
|
|
Table size
|
: 160 x 2000 mm
|
|
Feed speed
|
: 70 m/min
|
|
Conveyor motor
|
: 1/2 HP
|
|
FINGER JOINT SHAPER MACHINE RIGHT : B – FSR 62A
|
|
|
Working demension (W x L x T)
|
: 620 mm, 150 – 800mm, 15 – 150 mm
|
|
Motor of finger spindle
|
: 25 HP x 1
|
|
Size of finger cutter
|
: 70 x 160 x 4 x 4T
|
|
Spindle finger speed
|
: 5800 rpm
|
|
Power of cut-off saw
|
: 7,5 HP x 1
|
|
Size cut-off saw
|
: 255 x 100T x 4 x 50mm x 1 pcs
|
|
Spindle speed
|
: 4800 rpm
|
|
Finger shaper table conveyor motor (R&L)
|
: 2 HP x 1
|
|
Size scoring saw
|
: 180 x 60T x 5mm x 1 pcs
|
|
Spindle speed
|
: 2850 rpm
|
|
Conveyor power
|
: 1/2 HP x 1
|
|
Hydraulic power
|
: 2 Kw x 1
|
|
Cycle speed packing/min
|
: 3 – 5 times/min
|
|
FINGER JOINT SHAPER MACHINE LEFT & GLUE SPREADER: D – FSL 62A
|
|
|
Working demension (W x L x T)
|
: 620 mm , 150 – 800mm, 15 – 150 mm
|
|
Motor of finger spindle
|
: 25 HP x 1
|
|
Size of finger cutter
|
: 70 x 160 x 4 x 4T
|
|
Spindle finger speed
|
: 5800 rpm
|
|
Power of cut-off saw
|
: 7,5 HP x 1
|
|
Size cut-off saw
|
: 255 x 100T x 4 x 50mm x 1 pcs
|
|
Spindle speed
|
: 4800 rpm
|
|
Finger shaper table conveyor motor
|
: 2 HP x 2
|
|
Size scoring saw
|
: 180 x 60T x 5mm x 2 pcs
|
|
Conveyor power
|
: 1/2 HP x 1
|
|
Hydraulic power
|
: 2 Kw x 1
|
|
Roller glue height
|
: 150 mm
|
|
Cycle speed packing/min
|
: 3 – 5 times/min
|
|
AUTO FINGER JOINTING ASSEBLY PRESS : FJC 60/6
|
|
|
Working demension (L x W x H)
|
: 6200mm x 20-150 mm x 15-75 mm
|
|
Power off upper & lower roller
|
: 2,5 HP x 2
|
|
In-feed inverter
|
: 5 HP
|
|
In-feed speed
|
: 10 – 70 m/min
|
|
Cut off saw power
|
: 5 HP
|
|
Cut off saw demension
|
: 355 x 120T x 3 x 25.4
|
|
Spindle speed
|
: 2850 rpm
|
|
Hydraulic power
|
: 5 HP
|
|
Capacity
|
: 3 – 6 pcs/min
|
