HEAVY DUTY STRAIGHT LINE RIP SAW
HEAVY DUTY STRAIGHT LINE RIP SAW

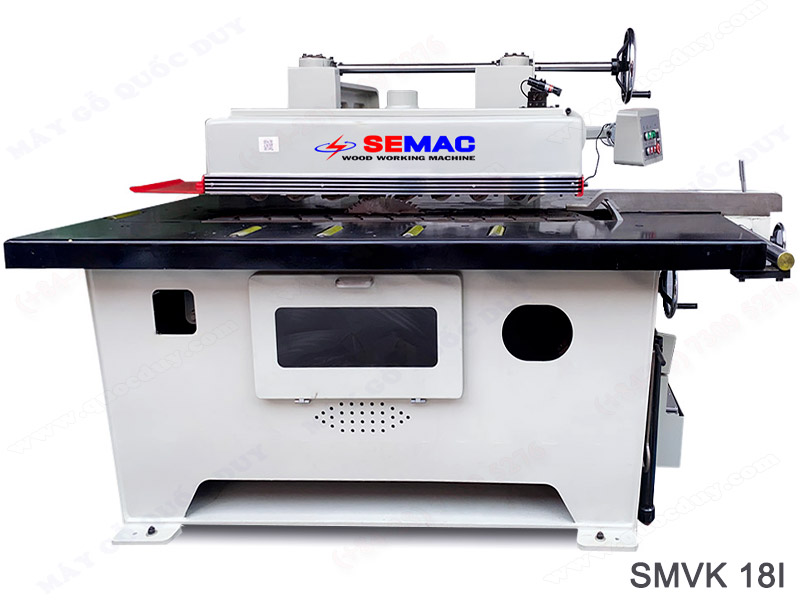

Model: SMVK 18I
Features
|
|
Automatic lubricating oil supply system protects the machine and prolongs its service life
Laser light helps to align the cutting line easily and with high accuracy
Safety for operator with anti-reverse device
Fusing between the workpiece holder and the machine frame with precision and stability.
Wide working surface double chain conveyor delivers stable workpiece smoothly
Easy construction and operation to help achieve large output
Feeding speed controlled by inverter
|
|
Specifications
|
|
Max. Working thickness
|
: 120 mm
|
Min. Working length
|
: 230 mm
|
Max. Working width
|
: 460 mm
|
Main spindle speed
|
: 2930 rpm
|
Spindle diameter
|
: Ø 50.8 mm
|
Feeding speed
|
: 3-23 rpm
|
Motor
|
: 15 Kw
|
Conveyor motor
|
: 2.5 kw (adjust by inverter)
|
Total power
|
: 17.5 Kw
|
Saw blade diameter
|
: 405/455mm
|
Saw blade thickness
|
: 3.2-5 mm
|
Working size
|
: 2000 x 1020 mm
|
Machine size
|
: 2250 x 1600 x 1350 mm
|
