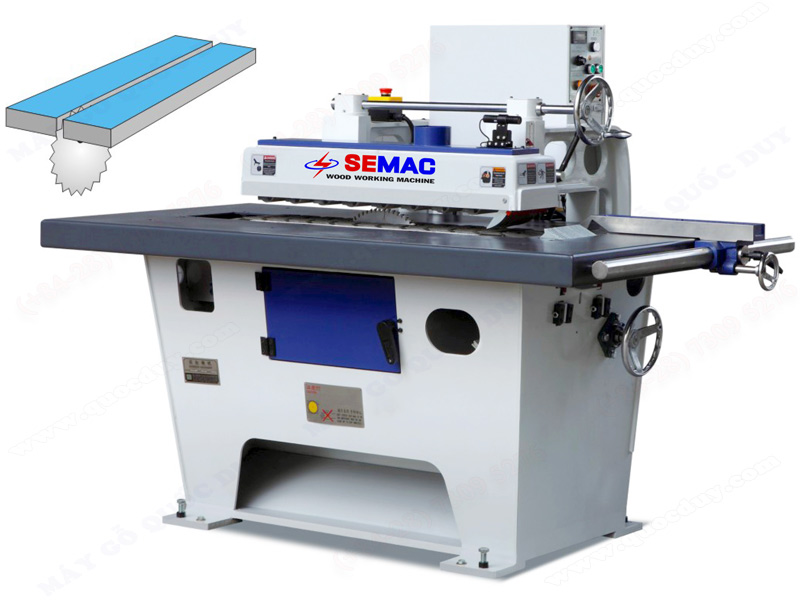

SLITTING UNDER THE TRIMMING SAW MAHINE
SLITTING UNDER THE TRIMMING SAW MAHINE
Model: SA 16I
|
Technical parameters
|
|
|
- Unique double-ended bearing support, multi-V-precision manufacturing of linear tracks, high hardness, wear-resistant conveyor chain pieces, so delivery precision, stable.
- Spindle and motor with flexible coupling connection, easy maintenance, no loss of power, low noise, high precision
- Unique volumetric lubrication system to ensure excellent lubrication performance, so that the workpiece is smooth and precise delivery
- The use of variable frequency feed, making soft, hardwood sawing speed is reasonable, smooth wood cutting, so that the workpiece size more accurate
|
|
|
Specifications
|
|
|
Saw blade diameter
|
: 355 mm
|
|
Max.processing thickness
|
: 80mm
|
|
Shortest processing length
|
: 250 mm
|
|
Spindle speed
|
: 2900 r.p.m
|
|
Spindle diameter
|
: Ø 50.8 mm
|
|
Feeding speed
|
: 3-26 m/min
|
|
Main motor power
|
: 9kw/11 kw
|
|
Feed motor power
|
: 0.75 kw
|
| Total power | : 9.75/11.75 kw |
|
Blade thichness
|
: 3.2 -5 mm
|
|
Working desk size
|
: 1750 x 900 mm
|
|
Dimensions
|
: 1950 x 1380 x 1350 mm
|
|
Machine weight
|
: 970 kg
|
|
