STRAIGHT LINE RIP SAW

  • :SA-18
  • :Taiwan
  • :12 months
  • :Call
  • :

STRAIGHT LINE RIP SAW

Model: SA-18

ma-y-cua-rong-thang-luoi-duoi-sa
Features

1.    Machine body with high tensile steel plate, fine welding tempering, sandblasting, Roughing processing, processing a number of programs, and Disposable to highly sophisticated by CNC machine manufactured.Complete machine body and keep the body balanced 90 degrees to the spindle.

2.    Without the oil injector in the spindle apparatus, the provincial maintenance can save time and move the spindle easy effort.

3.    Saws slider have high-precision to dual-slider with high-quality manufacturing materials.

4.    Machine body castings made by FC.28 ~ 30 casting made materials, manufacturing quality stability and high stability of the finished product, so that customers get profits.

5.    Rail slider with an automatic oiling system device, maintaining stable lubricating automatic safety device and will stop automatically when there is no oil,extend machine life and operational safety.

may-cua-rong-thang-luoi-duoi-sa

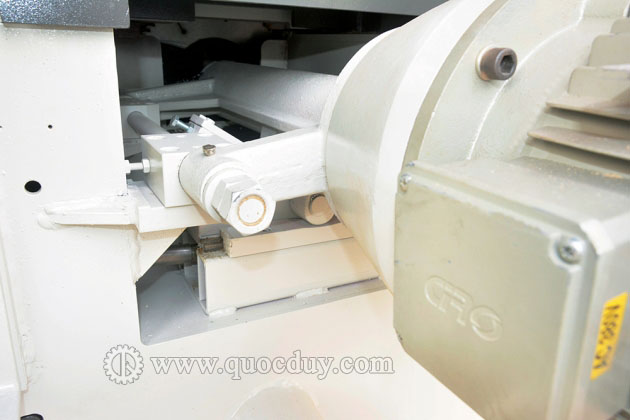

Without the oil injector in the spindle apparatus, the provincial maintenance can save time and move the spindle easy effort.

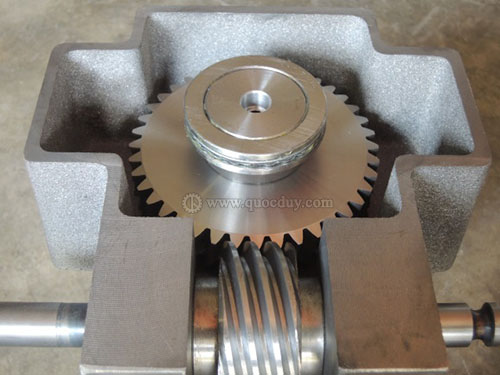

Worm gear and worm shaft, use bearing, for use of more lightwe
may-cua-rong-thang-luoi-duoi-sa7
may-cua-rong-thang-luoi-duoi-sa1

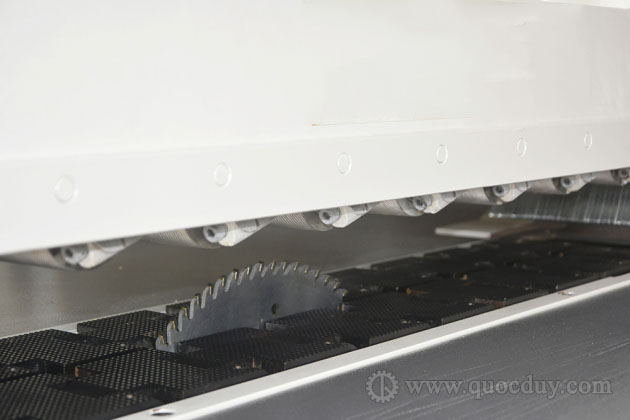

Saws slider have high-precision to dual-slider with high-quality
Automatic lubrication systems
Automatic lubrication systems with automatic oiling, and when fuel supplement, the machine will stop working to protect the machine operating performance



may-cua-rong-thang-luoi-duoi-sa6
Specifications
 Max.cutting thickness
: 120 mm
 Table surface
: 2000 × 1160 mm
Sawblade dia.xbore of saw blade
: Ø 355~455mm
Throat depth
: 660 mm
Max.process width in right of saw blade
: 700 mm
Holddown roller/size
: 8 pcs
The shortest process lenght
: 200mm
Spindle spee
: 3000rpm
Feeding speed
: 11~26 m/min
 Spindle power
: 15 HP/20 HP
 Feeding power
: 2  HP
 Dust collection hole x suggest power
: Ø 125(5") x 5 HP
Machine size
: 2270 × 1710 × 1550 mm
Net weight
: 1700 kgs
Gross weight
: 1900 kgs
