STRAIGHT LINE RIP SAW
Straight line rip saw an integrated construction of pressure roller and frame ensures high accuracy and rigidity. Anti-kickback finger positioning
- :JRS-12TK
- :Taiwan
- :12 month
- :Call
- :

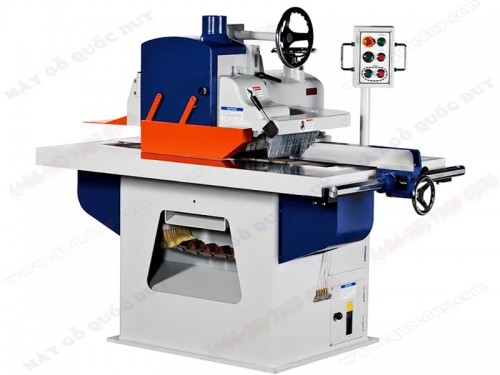

STRAIGHT LINE RIP SAW
Model: JRS-12TK
FEATURES | |

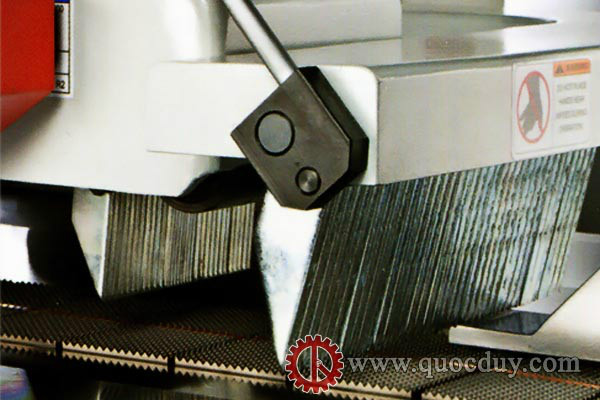

- An integrated construction of pressure roller and frame ensures high accuracy and rigidity. - Anti-kickback finger positioning device prevents wearing resulting from contacting between the anti-kickback fingers and chain conveyor. Also service life of chain conveyor and cutting accuracy are assured. - Specially designed slidways ensures atable feed and high cutting accuracy. Way surfaces are hardened and precision ground for added feed accuracy and service life. - Double anti-kickback fingers mounted at infeed end provides maximum protection for operator. - The fence moves on tube rack machism, roviding smooth movement, convenient adjustment and positionong. - Automatic lubrication to V-way track assures smooth running. Link chain stops in the event of lack of oil. |
|
SPECIFICATIONS | |
Holddown Rollers
|
: 05
|
Max. Working thickness
|
: 100 mm
|
Arbor motor
|
: 7.5 HP
|
Feeding motor
|
: 1 HP
|
Spindle rotation
|
: 3750 rpm
|
Saw arbor diameter
|
: 25.4 mm
|
Saw blade diameter
|
: Þ250 – Þ305 mm
|
Feeding speed
|
: 13/17/21/25 m/min
|
Distance between saw & column
|
: 460 mm
|
Table area
|
: 890 x 1450 mm
|
Net weight
|
: 900 kgs
|
